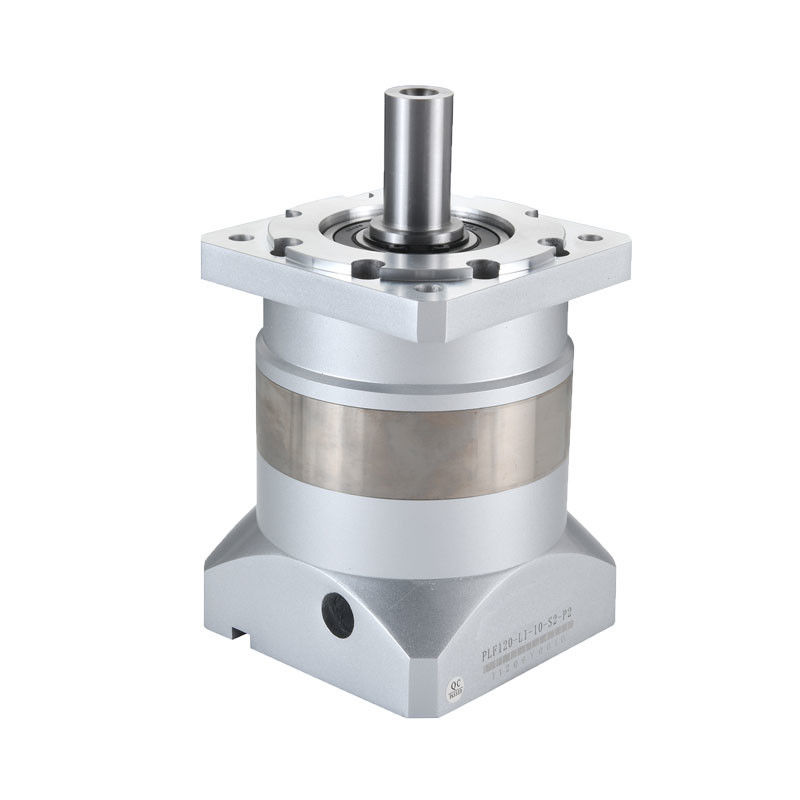

PLF120-L2 2-stage RATIO 12 to 70 High Quality Spur Gear Planetary Gearbox For CNCs And Various Industrial Automation Applications

Kaifull PRMCAS Spur Gear Planetary Gearbox Applications

High precision PLF120-L2-(12, 15, 16, 20, 25, 28, 35, 40, 50, 70)-S2-P2 series planetary gearboxs are widely used in industrial automation fields and warmly appreciated by our customers.

Planetary gearboxes machines are widely used in the industrial fields, especially suitable for applications that require high precision, high load and high reliability, such as CNC machine tools, civil carving machines, medical equipment, laser equipment, automobile manufacturing, robotics, metallurgy Rolling machines and roll machines, aerospace, military equipment, new energy system, communication automatic adjustable antennas, scientific measurement of calibration equipment, shipbuilding industry, etc.

The following are several common APPLICATIONS of planetary reducer in the industrial field:

Planetary gearboxes machines are widely used in the industrial fields, especially suitable for applications that require high precision, high load and high reliability, such as CNC machine tools, civil carving machines, medical equipment, laser equipment, automobile manufacturing, robotics, metallurgy Rolling machines and roll machines, aerospace, military equipment, new energy system, communication automatic adjustable antennas, scientific measurement of calibration equipment, shipbuilding industry, etc.

Machinery manufacturing: Planetary reducer can be used to drive various rotor components on the machine tools, such as lathes, milling machines, grinding machines, etc.

Packaging machinery: Planetary reducer can be used to drive various packaging equipment such as sealing machines, filling machines, labeling machines, and marking machines to achieve efficient and accurate packaging movements.

Textile machinery: Planetary reducer can be used for transmission of textile production equipment such as weaving machines, rolling machines, printing and dyeing machines to improve production efficiency and product quality.

Printing machinery: Planetary reducer can be used for transmission of printing equipment such as plastic printers, flat printing machines, soft printers, etc., to achieve precise and fast printing processes.

The field of aerospace: Planetary reducer can be used as high precision, high performance, high reliability forces, which are widely used in aircraft, missiles, satellites, aerospace fields.

Automotive industry: Planetary reducer can be used in the transmission of gearboxes, engines, hub reducers, power transmission, clutch and other components of the automotive industry to improve the power and fuel economy of automobiles.

The field of petrochemical industry: Planetary reducer can be applied to petroleum, chemical industry and other fields. In the process of natural gas, chemical production, it is used as a driver equipment.

Medical equipment: Planetary reducer can be used for transmission of medical equipment such as X -ray machines, CT machines, and nuclear magnetic resonance to ensure the stability and accuracy of medical equipment.

Metallurgical machinery: Planetary reducer can be used for the transmission of metallurgical production equipment such as rolling machines and casting machines to improve production efficiency and product quality.

Various industrial robots: Planetary reducer can be used for the transmission and execution agencies of various industrial robots to improve the accuracy and execution efficiency of robots.

Kaifull PRMCAS planetary gearbox feature and advantages

Kaifull PRMCAS Planetary reducer has the following characteristics:

High drive efficiency: The transmission efficiency of planetary reducer is usually high, and can reach more than 90%. This is because in the planetary gear transmission, multiple gears pass the power at the same time, reducing the transmission loss.

Large torque output: Planetary reducer can achieve larger torque output through multi-stage gear transmission. Each planet wheel can withstand part of the load, so that the overall load is scattered to multiple gears, increasing the torque output capacity.

Compact structure: The planetary reducer has a compact structural design. The gear device is located in a closed outer gear and occupies relatively small space. This makes the planetary gearbox special advantageous in limited space applications.

High rigidity and accuracy: Planetary reducer has high rigidity and accuracy, which can provide accurate output movement and position control. This makes the planetary reducer very important in applications that require precision exercise and positioning, such as industrial machinery and automation equipment.

Stable output movement: Due to the coordination of multiple gears, the planetary reducer provides smooth output motion, which reduces the production of vibration and noise. This is very important for applications that require low noise and stable operation.

Rich specifications and options: Planetary reducer has a variety of configurations and options, such as different deceleration ratios, input and output shaft layout, attachment and sensor installation to meet the requirements of specific applications.

Naming Rules

If you need other performance specifications, kindly contact us any time by sales@zionkaifull.com, or or whatsapp +8618682160096.

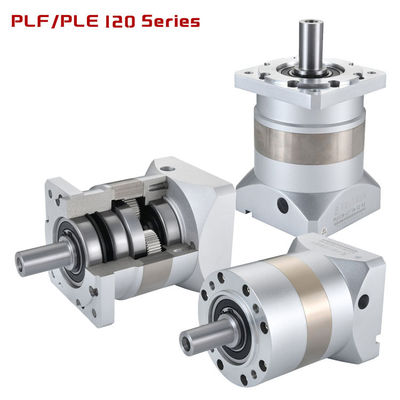

Technical specifications of more models of PLF060 to PLF120 Series

If you need the mechanical drawings of a model or want any customization, kindly contact us anytime by sales@zionkaifull.com, or whatsapp +8618682160096.

Note: If you find difficulty in model selection, just kindly contact us and the most proper reducer will be recommended.

More Types of Spur Gear Planetary Gearboxes for your kind reference

• Warranty period is from 18months to 2 years depending on products.
• 24*7 customer technical support by email, WhatsApp, TeamViewer, voice or video call etc.
• Remote or onsite technical training services etc.
• More services as per customer need.

Working Priciples

The planetary reducer is a power transmission agency that uses the speed converter of gears to slow down the rotation of the motor to the required speed and get an increased torque at the same time. Generally speaking, the ratio of the number of large wheel to the gear is the small wheel is transmission ratio.

In practical applications, planetary reducers are usually used with power sources, such as servo motors and step motors to achieve accurate position control, speed adjustment and torque increase. In addition, due to its characteristics of high deceleration ratio and high precision, planetary gearboxes are also widely used in the fields of robots, CNC machine tools, packaging machinery, textile machinery. In these fields, the efficient transmission and precise control of the planetary reducer are of great significance to improving production efficiency and product quality.

Kaifull PRMCAS planetary gearbox in Functions:

Increase Load weight and high precision: The load needs to be moved and requires precision planetary reducer when required for precision positioning. Generally, automated equipment such as aviation, satellites, medical care, military technology, wafer equipment, and robots. The increase in the torque of the servo motor through the precision planet deceleration machine can effectively solve it.

Increase output torque: If the output torque is improved, if the output torque method of directly increasing the servo motor is adopted, the expensive and high-power servo motor must be used. The servo motor must also have a stronger structure. The current also needs to be increased. At this time, a larger driver must be used. The specifications of power electronic components and related mechanical and electrical equipment must also increase, and the cost of the control system will be greatly increased.

Increase equipment efficiency: Theoretically, the power to increase the servo motor is also the way to output torque. It can be doubled by adding a speed of servo motor to double the power density of the servo system The specifications of the component, that is, do not need to increase the additional cost.

Increase the service life of the device: Precision planet reducer can also effectively solve the attenuation of low -speed control characteristics of the motor. Due to the decrease in speed of servo motors, a certain degree of attenuation is caused, especially in terms of signal retrieval and current control at low speeds, it is particularly easy to see.
