Stepper Motor Drive
>
DC input 4.5A 2 Phase Step Servo Drive Closed Loop With Encoders Y2SS3-P
All Category

Spur Planetary Gearbox

Helical Planetary Gearbox

Harmonic Drive Gearbox

Electric Spindle Motor

Stepper Motor Drive

Hybrid Stepper Motor

Electric Cylinder

Closed Loop Stepper Motor

Linear Motor Driver

CNC Rotary Table

Precision Positioning System

Linear Hybrid Stepper Motor
Contact Us
Mr. Bruce Niu
bruce.niu@zionkaifull.com
0086-18682160096
Contact Now
name
  • name
  • name
  • name
  • name

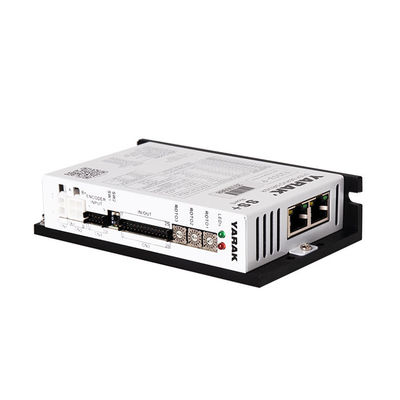

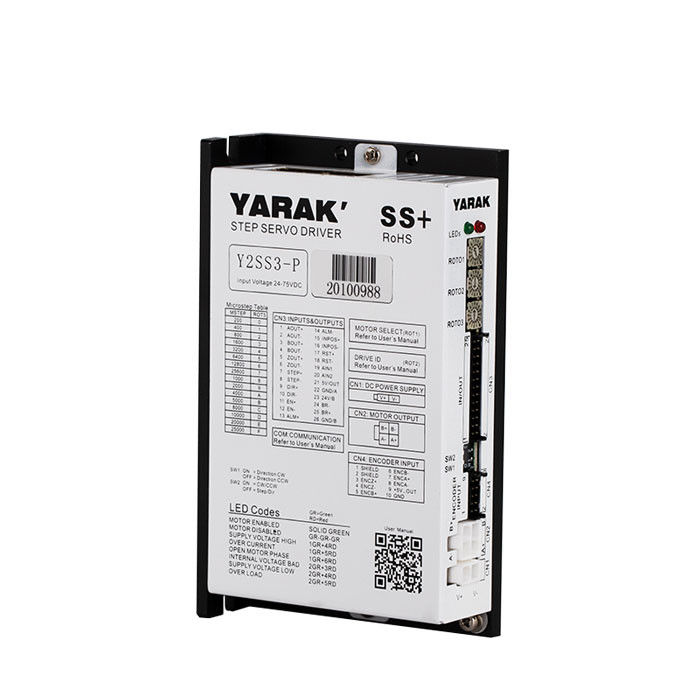

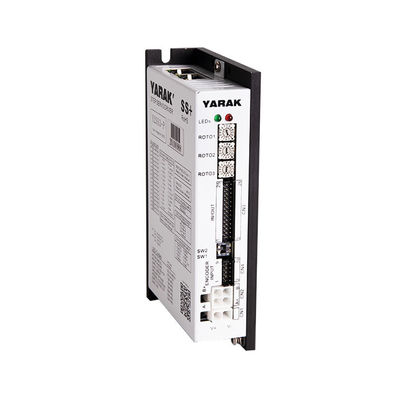

DC input 4.5A 2 Phase Step Servo Drive Closed Loop With Encoders Y2SS3-P

Brand Name: YARAK
Model Number: Y2SS3-P
MOQ: ≥50pcs
Packaging Details: 50pcs for each carton
Payment Terms: Company account based T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE, ROHS
Type:
Closed-loop, Step Servo
Alarm Output:
Yes
Phase:
2 Phase
Input Voltage:
24 To 48VDC
Control Mode:
Plus+Direction, CW & CCW
Control Signal:
5 VDC And 24 VDC Compatible
Output Current(A):
1.0 To 4.5A
Special Functions:
Auto Tuning, Alarm Output, Load Inertia Optimization, Load Current Automatic Adjustment
Matching Motors:
Nema8 To 34
Highlights:
Dynamic Current Control, Open-loop & Closed-loop Compatible, Wide Motor And Application Compatibility
Customization:
Available With MOQ
Supply Ability:
10000pcs per Month
Highlight:

Step Servo Drive Closed Loop

,

2 Phase Step Servo Drive

Product Description

Y2SS3-P Adaptive 4.5A 2 Phase closed loop Step Servo Drive with Encoders for Industrial Automation



1. Products Overview

Characteristics,

◆  DC input step servo driver

◆  Adaptive motor and load, adjust current automatically, 0.5-8.0A

◆  Input voltage: 24 - 75 VDC

◆  Pulse + direction / double pulse control mode

◆ 16 stall subdivide optional

◆  Control signal 5-24V compatible

◆  Multiple electrical protection



Y2SS3-P adopts servo control technology, and are widely used in factory automation, carving machines, electronic product manufacturing, logistics sorting, robots, various special automation equipment, medical equipment, CNC machine tools, laser equipment, printing machinery, material processing, safety system, navigation system, industrial test and measurement etc. There are many fields such as measurement and metering systems.



2. Stepper Driver External Interfaces

DC input 4.5A 2 Phase Step Servo Drive Closed Loop With Encoders Y2SS3-P 0





3. LED Status Indicator Description

Based on LED status indicators, driver working status or abnormal causes can be identified.

Display Color Explain
POWER Green The green light flashes when the driver is normal
ERROW Red

When the driver went wrong, the traffic lights

flashing alternately











Status

Failure

Causes

green flicker

Drive normal

--

green always on

Drive not enabled

EN port has high level input

red and 1 green

Drive temperature is too high

Need to strengthen the heat

red and 1 green

Drive power input over voltage

Power supply voltage is greater than 75V

red and 1 green

Drive over current

Motor wiring fault or poor contact

red and 1 green

Motor winding open circuit

The motor is not connected well

red and 2 green

Drive internal voltage error

Power is too low

red and 2 green

Drive power input under voltage

Power supply voltage is less than 24V

5 red and 2 green

Over load

Exceeded load















































4. DIP Switch Seetings

SW 1 SW 2 SW 3 SW 4



Microsteps



PPR
OFF OFF OFF 0 FF 125 25000
ON OFF OFF 0 FF 100 20000
OFF ON OFF 0 FF 50 10000
ON ON OFF 0 FF 40 8000
OFF OFF ON 0 FF 25 5000
ON OFF ON 0 FF 20 4000
OFF ON ON 0 FF 10 2000
ON ON ON 0 FF 5 1000
OFF OFF OFF 0 N 128 25600
ON OFF OFF 0 N 64 12800
OFF ON OFF 0 N 32 6400
ON ON OFF 0 N 16 3200
OFF OFF ON 0 N 8 1600
ON OFF ON 0 N 4 800
OFF ON ON 0 N 2 400
ON ON ON 0 N 1 200



5. Motor Direction and Control Model Selection

Display Switch Function
SW 5



Motor rotation direction

ON:CW direction

OFF:CCW direction
SW 6 Single and double pulse selection

ON:CW/ CCW control mode

OFF:STEP/ DIR control mode



6. Control Signals

Input signals descriptions as the followings,

Display Terminal name Function
STEP

Pulse signal

Receive 5-24V/NPN/PNP signal
DIR

Direction signal

Receive 5-24V/NPN/PNP signal
EN

Enable signal

 Receive 5-24V/NPN/PNP signal; EN no input, motor enable



Output Signals functions as bellow,

Display Terminal name Function
ALM



Error output

When the drive is wrong, the

OUT port is connected to the maximum of 3 0 V @ 1 0 0 m A
INPOS



Output to position

After the motor is in position,

the OUT port is connected to the maximum of 3 0 V @ 1 0 0 m A



7. Connections

Input connections:

DC input 4.5A 2 Phase Step Servo Drive Closed Loop With Encoders Y2SS3-P 1



Output connections:

DC input 4.5A 2 Phase Step Servo Drive Closed Loop With Encoders Y2SS3-P 2



8. Mechcanical Dimenssions

DC input 4.5A 2 Phase Step Servo Drive Closed Loop With Encoders Y2SS3-P 3



Tags:

Step Servo Drive

High Voltage Stepper Driver

Mini Stepper Driver
