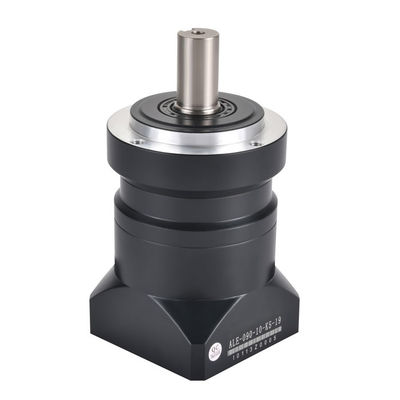

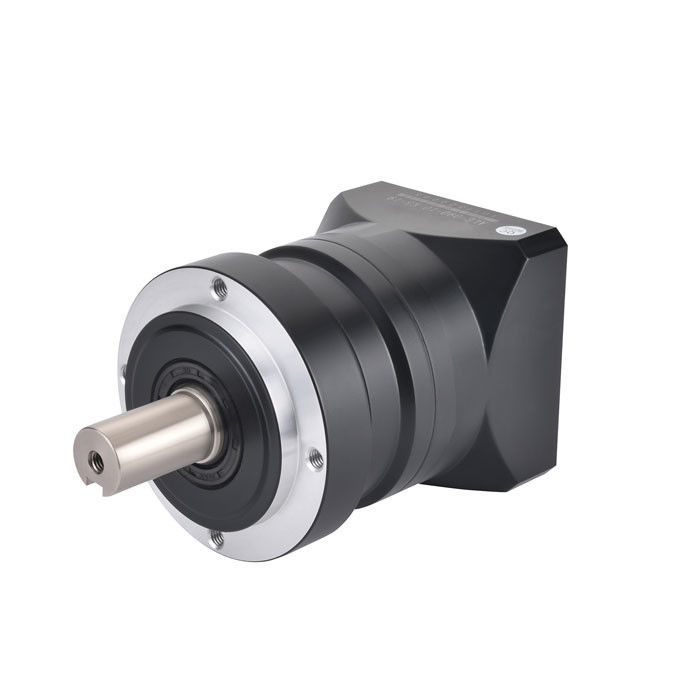

ALE090 Series 1-stage RATIO 3 to 10 Extra High Precision Cost-effective Helical Gear Planetary Gearbox For CNCs And Various Industrial Automation Applications


PRMCAS extra high precision ALE090 cost-effective series helical gear planetary gearboxs are widely used in high-end industrial automation fields, such as,

• CNC machinese, including cutting, engraving, milling etc, of materials such as wood, metals, stones, glasses, etc.
• Laser machines, such as cutting, marking, soldering, etc.
• Plasma machines, textile machines, printing machines, food processing and medical machines, packaging machinesetc.
• Other industrial segments, such as conveying system, SPM automation system, aero space industry etc.

The MAIN DIFFERENCES between straight gear planet reducer and helical gear planet reducer is as followings,

Different structures. The internal solar wheels, large planet wheels and transmission gears of straight gear planet reducer are all straight gear; the internal solar wheels, large planet wheels, and transmission gears of the planet reducer are all helical gear.

Different precision. The first level accuracy of straight gear planet reducer is usually within 10 arc-min, and the detailed one can reach 6 arc-min; the first level precision of the helical planet reducer is about 5 arcs, and the detailed one can reach 1 arc-min.

Different torque and efficiency are transmitted. The straight gear planet reducer is under the motor axis, and the torque is less torque and the high efficiency is low when the straight gear is combined; The transmission device is stable, the tensile strength is high, and the efficiency is high.

Different noise. The noise and vibration of the planetary reducer are smaller.

The bearing capacity is different. The overlapping coefficient of the helical gear is greater than the overlap coefficient of the straight gear, so the bearing capacity of the helical gear is higher than that of the straight gear.

The support methods of planet stand are different. The planetary shelf of the helical gear must be a dual-supporting structure, and the straight gear can be used both with dual support or a single support structure.

The difficulty of manufacturing and assembly is different. When the straight gear reducers are manufactured, the difficulty and economical of the helical gear are often integrated because it needs to be treated with multiple slice straight gears.

If u need any performance specification customization, please kindly contact us anytime by sales@zionkaifull.com, or whatsapp +8618682160096.

ALE090 Series Helical Gear Planetary Gearbox General Technical Specifications

ALE090 Series 1-stage models main technical data

If you need the mechanical drawings of a model or want any customization, kindly contact us anytime by sales@zionkaifull.com, or whatsapp +8618682160096.

Note: If you find difficulty in model selection,  just kindly contact us and the most proper reducer will be recommended or customized.

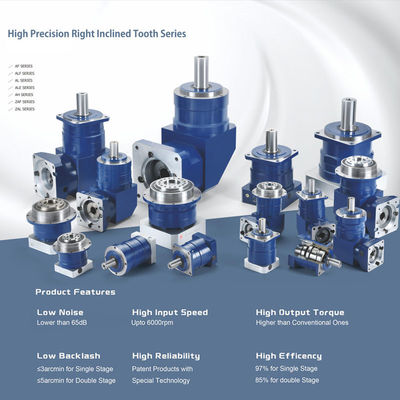

More Types of HELICAL Gear Planetary Gearboxes Available

• Warranty period is from 18months to 2 years depending on products.
• 24*7 customer technical support by email, WhatsApp, TeamViewer, voice or video call etc.
• Remote or onsite technical training services etc.
• More services as per customer need.
