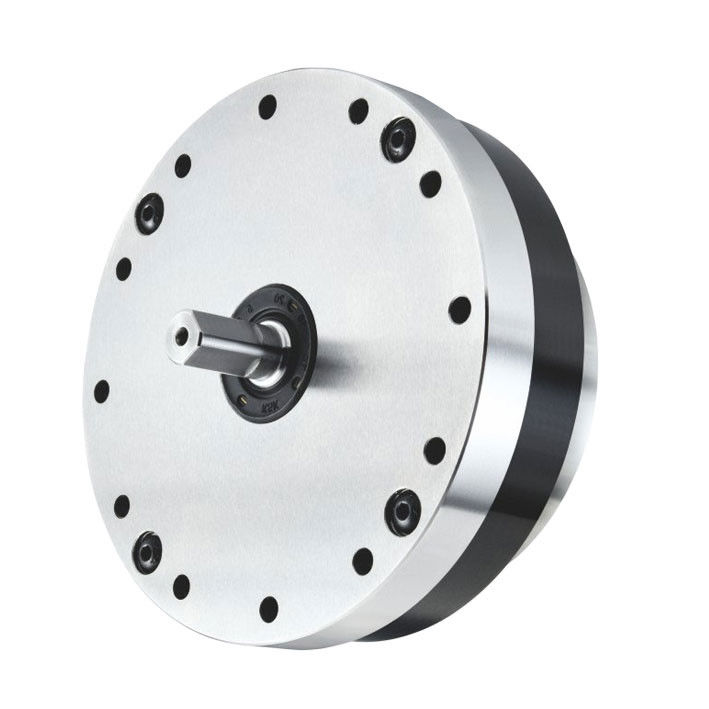

ZLSH25-1 RATIO 50/100:1 High Precision Harmonic Gearbox For Robotics And Various Industrial Automation Applications


Harmonic gearboxes, also called harmonic reducers, are mainly composed of four basic components: wave generator, flexible gear, flexible bearing, and rigid gear. Harmonic transmission reducer is a kind of flexible bearing with a wave generator to produce controllable elastic deformation of the flexible gear and it transforms the force by meshing with rigid teeth.

PRMCAS Harmonic Gear Reducers Features and Advantages as the followings,
High precision transmission: Harmonic reducer can provide high -precision transmission and location control. It is suitable for various NC machine tools, processing centers and other equipment, which can achieve precise motion control and improve processing accuracy.
High torque output: Harmonic reducer has high torque density, which can provide stable and reliable torque output during the processing of machine tools to ensure the stability and accuracy of the processing process.
High efficiency transmission: The harmonic reducer uses the principle of flexible gear transmission. It has high transmission efficiency, can reduce energy loss, and improve the energy utilization rate of machine tool equipment.
Compact structural: Harmonic reducer has a compact structural design, which can achieve efficient transmission in a limited space and save the installation space of machine tool equipment.
High speed stability: Harmonious reducer can maintain high stability and stability when running at high speed, and it is suitable for strict occasions such as high -speed cutting and high -speed processing.

Applications
Harmonic reducer is widely used in many automation fields, including but not limited to industrial robots, service robots, robotic arm, carton packaging machinery, medical machinery, measurement and analysis/test machine, large telescope, cable manufacturing equipment, precision packaging Machinery, meteorological equipment, advanced instrumentation, optical manufacturing equipment, semiconductor manufacturing devices, crystal manufacturing equipment, FPD manufacturing devices, communication devices, aerospace machines, CNC machine tools, radar and various satellite ground receiving equipment.
The harmonic reducer has played an important role in improving production efficiency and promoting industrial upgrades with its high -precision, high reliability, small size, light weight, and large loading capacity. Essence With the advancement of technology and the decline in cost, the application field of harmonic reducer is still expanding.



ZLSH25-50-I, reduction ratio 50:1 harmonic gear reducer mechanical drawings and main technical specifications as bellow,


ZLSH25-100-I, reduction ratio 100:1 harmonic gear reducer mechanical drawings and main technical specifications as bellow,


Note: If you find difficulty in model selection, just kindly contact us and the most proper reducer will be recommended.

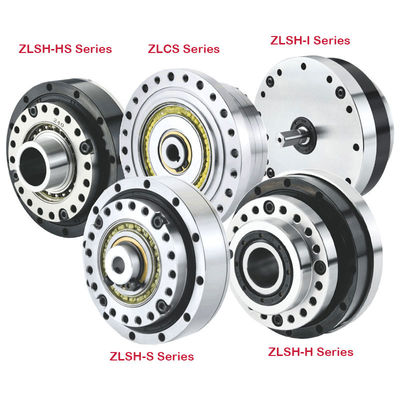

More Types of Harmonic Gearboxes Available
