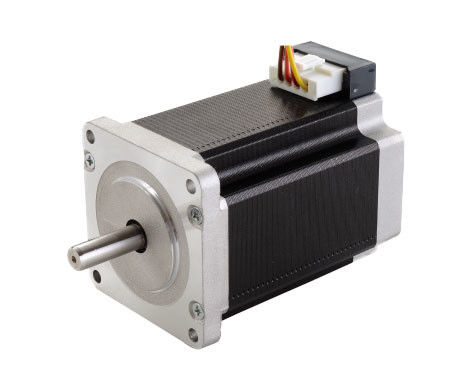

1. Products Overview

Step motor is a motor that converts the electrical pulse signal into the corresponding angle displacement. For each of the pulse signal, the rotor rotates a certain angle accordingly, and the speed is proportional to the input pulses’ frequency. Therefore, step motor is also called pulse motor.

The biggest difference between step motor compared to other control motors is that it receives digital control signals (pulses) and converts into angle displacement accordingly. Enter a pulse signal to get a specified position increment. Compared with the traditional DC control system, such a so-called incremental position control system, the stepper system complexity and cost are significantly reduced. The angular displacement of the stepping motor is strictly proportional to the number of input pulse, and it is synchronized with the pulse in time. Therefore, by controlling the pulse frequency and pulse quantity, the motor shaft speed, and position can be controlled precisely too.

At the same time, Kaifull has solved many problems of traditional stepper drivers buy the latest patented technologies. There are many middle and high end customers globally, and they highly appreciate our stepper motor and drives very much.

Several advantages of stepper motors

High precision

The rotation angle of the stepper motor can be finely controlled, and each step corresponds to a determined rotation angle, so the rotation accuracy of the stepper motor is very high. Compared with traditional DC and AC motors, stepper motors can more accurately control position and angle, making them suitable for applications that require high-precision position control.

Wide speed adjustment range

The speed of a stepper motor is determined by the driving current and voltage, so the stepper motor can achieve a wide range of speed adjustment. Meanwhile, according to different loads, the stepper motor can adapt to load changes by changing the driving signal, thereby maintaining a constant speed. Based on the frequency of the input pulse signal, smooth speed regulation can be achieved.

Fast response speed

The response speed of the stepper motor is very fast, and it can complete rotation instructions in milliseconds. This is determined by the special nature of the stepper motor control method. Traditional motors require acceleration and deceleration processes to achieve rotation, while stepper motors can achieve rapid rotation by controlling pulse frequency and time.

High torque

A stepper motor can generate a very large torque and maintain a high torque even at high speeds. This is due to the special driving method of the stepper motor, which can maintain a constant torque output in each stepper cycle. Therefore, stepper motors are suitable for applications that require high torque generation.

Long service life and cost savings

The production cost of stepper motors is relatively low, occupying small space, and easy to install and maintain, so their usage cost is very low. Meanwhile, due to the ability to achieve position and angle control through control signals, complex sensors and control circuits in traditional control methods can be eliminated, resulting in cost savings. At the same time, the stepper motor does not need to adjust the phase through brushes and commutators like ordinary DC motors, reducing friction. In addition, we use unique and high-quality materials, so the Kaifu hybrid stepper motor has a long lifespan and hardly requires special maintenance, further reducing customer costs.

Target Applications of Kaifull PRMCAS Hybrid Stepper Motors

The stepper motor is mainly used in the field of CNC machine tool manufacturing. The reason why it is mainly used in this field is that the motor does not require A/D conversion and can directly convert digital pulse signals into angular displacement, which is exactly what CNC machine tool equipment needs and cannot be achieved by many other types of motors. Therefore, the stepper motor can be said to be the most ideal executive component of CNC machines, and it will naturally be widely used in the manufacturing field of CNC machines.

Stepper motors can also be used in many other machinery, such as motors in automatic feeding machines and general-purpose floppy disk drives. In addition, it can also be applied in printers and plotters.

Stepper motors have the characteristics of fast start stop and positioning, and are often used as actuators for position control in the field of digital control. In the fast operation of a stepper motor, it is required that the driving circuit provide the driving current to the stepper motor winding as close as possible to the technical specifications required to generate sufficient torque. The maximum allowable temperature on the surface of the stepper motor. Stepper motors are used in conjunction with drivers, and many drivers support subdivision function, which achieves very small step angles and more precise control. The torque of the stepper motor will decrease as the speed increases. The accuracy of a general stepper motor is 3-5% of the stepper angle and does not accumulate. The stepper motor can operate normally at low speeds, but cannot start above a certain speed, accompanied by a whistling sound.

Widely used in ATM machines, inkjet printers, engraving machines, photo machines, spraying equipment, medical instruments and equipment, computer peripherals and massive storage devices, precision instruments, industrial control systems, office automation, robots and other fields, especially suitable for applications that require smooth operation, low noise, fast response, long service life, and high output torque.

Machine tool industry

Stepper motors are widely used in the machine tool industry, mainly for controlling the feed and positioning of machine tools. In CNC machine tools, stepper motors can accurately control the machining position and speed of workpieces, thereby achieving high-precision machining. In addition, stepper motors can also be used to control the automatic feeding and tool changing functions of machine tools.

Automation equipment

Stepper motors are also widely used in automation equipment, such as automated production lines, automated packaging machines, automated handling robots, etc. Stepper motors can accurately control the movement and position of equipment, thereby achieving efficient automated production.

Electronic devices

Stepper motors also have certain applications in electronic devices, such as in various stages of electronic product production, such as solder paste printing, SMT placement, reflow soldering, visual inspection, production of cables with terminals, dispensing machines, screen laminating machines, etc. They can also be used in many devices, such as ATMs, vending machines, 3D printers, scanners, printers, etc.

Medical equipment

Stepper motors are also applied in medical equipment, such as medical robots, surgical instruments, etc. Stepping motors can accurately control the movement and position of robots and surgical instruments, thereby achieving high-precision surgery and treatment.

The automotive industry

Stepping motors are also applied in the automotive industry, such as seat adjusters, air conditioning door controllers, and so on. The stepper motor can precisely control the position and movement of car seats and air conditioning doors, thereby improving the comfort and safety of the car.

In the field of robotics

Stepping motors are also widely used in the field of robotics, such as industrial robots, service robots, etc. Stepping motors can accurately control the motion and position of robots, thereby achieving efficient production and service.

In summary, stepper motors have a wide range of applications in many fields, and their high accuracy, fast response speed, and convenient control make them the core components of many automation equipment. With the continuous progress of technology, the application fields of stepper motors will continue to expand and deepen.

2. Hybrid Stepper Motor General Technical Specifications

3. Hybrid Stepper motor Performance Datasheet

4. Mechanical Dimensions (in mm)

5. Wiring Diagram

6. Torque Speed Curves
