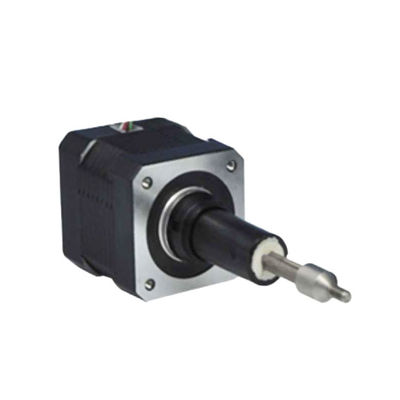

42LHS Series Four Wires Double Shaft 320N Force 2 Phase Nema17 Captive Hybrid linear Stepper Motors Linear Acuators
All Category

Spur Planetary Gearbox

Helical Planetary Gearbox

Harmonic Drive Gearbox

Electric Spindle Motor

Stepper Motor Drive

Hybrid Stepper Motor

Electric Cylinder

Closed Loop Stepper Motor

Linear Motor Driver

CNC Rotary Table

Precision Positioning System

Linear Hybrid Stepper Motor
Contact Us
Mr. Bruce Niu
bruce.niu@zionkaifull.com
0086-18682160096
Contact Now
42LHS Series Four Wires Double Shaft 320N Force 2 Phase Nema17 Captive Hybrid linear Stepper Motors Linear Acuators
  • name

42LHS Series Four Wires Double Shaft 320N Force 2 Phase Nema17 Captive Hybrid linear Stepper Motors Linear Acuators

Brand Name: PRMCAS
Model Number: 42LHS Four Wires Double Shaft Captive Series
MOQ: ≥50pcs
Packaging Details: 1pcs for each carton
Payment Terms: Company account based T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE, ROHS, CCC
Frame Size:
Nema 17, 42mm
Phase:
2 Phase
Step Angle:
1.8°
Angle Accuracy:
0.09°
Rated Current:
0.55/1.3/2.6A
Recommened Load Limit:
320N
Wires:
4
Highlights:
Low Noise, Low Vibration, Low Heating, High Smoothness, High Reliability
Customization:
Supported
Supply Ability:
10000pcs per Month
Highlight:

Nema17 Linear Hybrid Stepper Motor

Product Description

1. Hybrid Linear Motor Overview



Hybrid linear stepper motor is a precision transmission device that converts the motor rotor round rotation movement into a linear motion. It uses the coordination of the screw rod and the stepping motor to convert the rotation movement of the step motor into a linear motion of the screw, thereby achieving precise control of displacement.


Hybrid linear stepper motors are characterized with the advantages of high precision, high speed and high rigidity. Its accuracy can reach micron level, and the speed can reach several meters or even more than ten meters per minute. In addition, strong carrying capacity, simple structure, and convenient and even free of maintenance.


When selecting a hybrid linear motor, need to choose the appropriate screw type and specifications to meet different application scenarios and load needs, also the mechanical dimensions, driver current, etc.


2. Hybrid Stepper Motor Naming Rules and General Technical Specifications
Linear stepper motor naming rules,

42LHS Series Four Wires Double Shaft 320N Force 2 Phase Nema17 Captive Hybrid linear Stepper Motors Linear Acuators 0
General Specifications,

Step Angle 1.8° (2 Phase)
Step Angle Accuracy ±0.09°
Size Nema 17, 42mm
Insulation Grade 500VDC, 20 MΩ Min. ,Class B
Dielectric Strengt 500 VAC for 1 Minute
Temperature Rise Less than 80℃ (Rated Current)
Suface Temperature Max.Allowed 100℃
Humidity Range 20% to 90% RH
IP Grade IP40
Certificates Rohs, CE, CCC


3. 20LHS0494/0244/0164 Captive Type Hybrid Linear Stepper Motor Performance Datasheet

Model Name Wiring Rated Voltage

Rated

Current

 Resistance /phase

Inductance

/phase

 Power Consumption Temp. Rise Weight

Insulation

Resistance
42LHS2604 Bipolar 2.33V 2.6A 0.9Ω 1.33mH 14W 75℃ 352g 20MΩ
42LHS1304 5V 1.3A 3.8Ω 6.6mH
42LHS0554 12V 0.55A 21.9Ω 45.1mH


Note: Customization of motor specifications available.
Available leadscrew specifications,


Code Leadscrew Thread Dimensions in mm
diameter step lead
N φ5.54 0.003048 0.6096
J φ5.54 0.012192 2.4384
Q φ5.54 0.024384 4.8768
R φ5.54 0.048768 9.7536
P φ6.35 0.0039688 0.79375
A φ6.35 0.0079375 1.58750
B φ6.35 0.0158750 3.17500
C φ6.35 0.0317500 6.35


4. Mechanical Dimensions (in mm)

Double Shaft Captive Type Mechanical Drawings as bellow,
42LHS Series Four Wires Double Shaft 320N Force 2 Phase Nema17 Captive Hybrid linear Stepper Motors Linear Acuators 1

Note: Above A,B available customization information as bellow,

Distance Code Distance (mm) A (mm) B (mm)
302 12.7 19.8 0.51
303 19.1 26.2 6.86
304 25.4 32.5 13.21
305 31.8 38.9 19.56
306 38.1 45.2 25.91
307 50.8 57.9 38.61


5. Force and Pulse Rate Curves
42LHS Series Four Wires Double Shaft 320N Force 2 Phase Nema17 Captive Hybrid linear Stepper Motors Linear Acuators 2

6. Wirings
      42LHS Series Four Wires Double Shaft 320N Force 2 Phase Nema17 Captive Hybrid linear Stepper Motors Linear Acuators 3

Tags:

Four Wires Brake Stepper Motor

Double Shaft Stepper Motor
