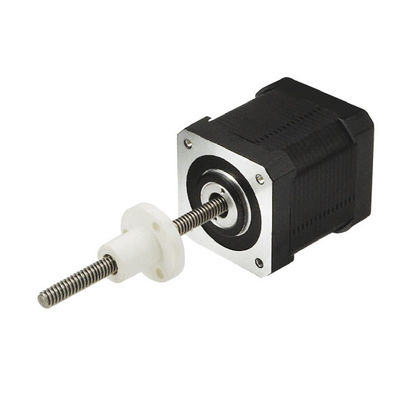

42LHS1204E-210 50N Force 2 Phase Nema17 External Nut Hybrid linear Stepper Motors Linear Acuators
  • name

42LHS1204E-210 50N Force 2 Phase Nema17 External Nut Hybrid linear Stepper Motors Linear Acuators

Brand Name: PRMCAS
Model Number: 42LHS1204E-210
MOQ: ≥50pcs
Packaging Details: 1pcs for each carton
Payment Terms: Company account based T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE, ROHS, CCC
Frame Size:
Nema17, 42mm
Phase:
2 Phase
Step Angle:
1.8°
Angle Accuracy:
0.09°
Rated Current:
1.2A
Force:
50N@10rps
Wires:
4
Highlights:
Low Noise, Low Vibration, Low Heating, High Smoothness, High Reliability
Customization:
Supported
Supply Ability:
10000pcs per Month
Highlight:

50N Linear Hybrid Stepper Motor

Product Description

1. Products Overview

The function of hybrid linear stepper motor is mainly to withstand the load and realize the linear movement. From the perspective of energy conversion, it is mainly to realize the mechanical energy of transforming electrical energy into a linear motion.



The Hybrid linear motor is suitable for applications which require high precision motion control, fast movement and long life. Typical applications include X-Y workbench, medical equipment, semiconductor processing, communication equipment, modulation valve, printing equipment, environmental protection equipment, automatic robots, 3D printers, aerospace, electronics manufacturing equipment etc.


2. Hybrid Stepper Motor Naming Rules and General Technical Specifications

Linear stepper motor naming rules,



42LHS1204E-210 50N Force 2 Phase Nema17 External Nut Hybrid linear Stepper Motors Linear Acuators 0

General Specifications,

Step Angle 1.8° (2 Phase)
Step Angle Accuracy ±0.09°
Size Nema17, 42mm
Insulation Grade 500VDC, 20 MΩ Min. ,Class B
Dielectric Strengt 500 VAC for 1 Minute
Temperature Rise Less than 80℃ (Rated Current)
Suface Temperature Max.Allowed 100℃
Humidity Range 20% to 90% RH
IP Grade IP40
Certificates Rohs, CE, CCC



3. 20LHS Series Hybrid Linear Stepper Motor Performance Datasheet

Model Current Resistance Inductance Min Thrust Rotor Inertia Bi/Unipolar Screw Lead Screw Length Weight

Motor

Length

 Driver
A/Ø Ω/Ø mH/Ø N @10RPS g.cm2 # of Wires mm mm kg mm
42LHS1204E-210 1.2 1.9 4.5 50 57 Bi (4) 8 210 0.35 40 Y2SD1

Note: Customization of motor specifications available.



4. Mechanical Dimensions (in mm)

42LHS1204E-210 50N Force 2 Phase Nema17 External Nut Hybrid linear Stepper Motors Linear Acuators 1


5. Wirings
  42LHS1204E-210 50N Force 2 Phase Nema17 External Nut Hybrid linear Stepper Motors Linear Acuators 2
