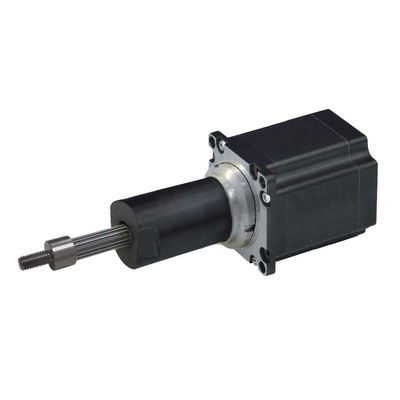

57LHS Series Double Stack Four Wires 990N Force 2 Phase Nema23 Captive Hybrid linear Stepper Motors Linear Acuators
  • name

57LHS Series Double Stack Four Wires 990N Force 2 Phase Nema23 Captive Hybrid linear Stepper Motors Linear Acuators

Brand Name: PRMCAS
Model Number: 57LHS Double Stack Four Wires Captive Series
MOQ: ≥50pcs
Packaging Details: 1pcs for each carton
Payment Terms: Company account based T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE, ROHS, CCC
Frame Size:
Nema 23, 57mm
Phase:
2 Phase
Step Angle:
1.8°
Angle Accuracy:
0.09°
Rated Current:
0.9/2.16/3.32A
Recommened Load Limit:
990N
Wires:
4
Highlights:
Low Noise, Low Vibration, Low Heating, High Smoothness, High Reliability
Customization:
Supported
Supply Ability:
10000pcs per Month
Highlight:

2 Phase Linear Hybrid Stepper Motors

Product Description

1. Products Overview

2. Hybrid Stepper Motor Naming Rules and General Technical Specifications
Linear stepper motor naming rules,

57LHS Series Double Stack Four Wires 990N Force 2 Phase Nema23 Captive Hybrid linear Stepper Motors Linear Acuators 0
General Specifications,

Step Angle1.8° (2 Phase)
Step Angle Accuracy±0.09°
SizeNema23, 57mm
Insulation Grade500VDC, 20 MΩ Min. ,Class B
Dielectric Strengt500 VAC for 1 Minute
Temperature RiseLess than 80℃ (Rated Current)
Suface TemperatureMax.Allowed 100℃
Humidity Range20% to 90% RH
IP GradeIP40
CertificatesRohs, CE, CCC


3. 20LHS0494/0244/0164 Captive Type Hybrid Linear Stepper Motor Performance Datasheet

Model NameWiring

Rated Voltage

Rated

Current

Resistance /phase

Inductance

/phase

Power ConsumptionTemp. RiseWeight

Insulation

Resistance

57LHS3324

Bipolar

3.25V3.32A0.98Ω1.33mH14W75℃352g20MΩ
57LHS2164

5V

2.16A

2.31Ω6.6mH
57LHS0904

12V

0.9A

13.33Ω45.1mH


Note: Customization of motor specifications available.
Available leadscrew specifications,


CodeLeadscrew Thread Dimensions in mm
diametersteplead
Aφ9.530.00793751.5875
Tφ9.530.0211664.22
Sφ9.530.0105842.1168
3φ9.530.01272.54
1φ9.530.02545.08
2φ9.530.050810.16


4. Mechanical Dimensions (in mm)

Captive Type Mechanical Drawings as bellow,
57LHS Series Double Stack Four Wires 990N Force 2 Phase Nema23 Captive Hybrid linear Stepper Motors Linear Acuators 1

Note: Above A,B available customization information as bellow,

Distance CodeDistance (mm)A (mm)B (mm)
30212.720.471.68
30319.126.828.03
30425.433.1714.38
30531.839.5220.73
30638.145.8727.08
30750.858.5739.78



5. Force and Pulse Rate Curves
57LHS Series Double Stack Four Wires 990N Force 2 Phase Nema23 Captive Hybrid linear Stepper Motors Linear Acuators 2

6. Wirings
     57LHS Series Double Stack Four Wires 990N Force 2 Phase Nema23 Captive Hybrid linear Stepper Motors Linear Acuators 3
