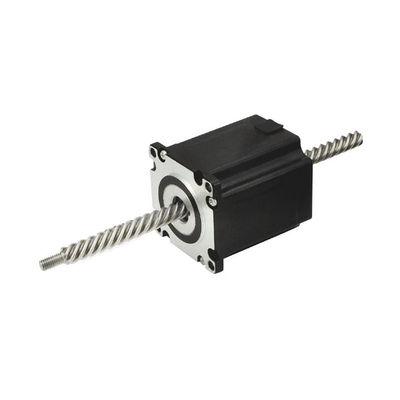

57LHS3004N Four Wires 100N Force 2 Phase Nema23 No Captive Hybrid linear Stepper Motors Linear Acuators

Brand Name:	PRMCAS
Model Number:	57LHS3004N-170
MOQ:	≥50pcs
Packaging Details:	1pcs for each carton
Payment Terms:	Company account based T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE, ROHS, CCC

Frame Size:

Nema 23, 57mm

Phase:

2 Phase

Step Angle:

Angle Accuracy:

0.09°

Rated Current:

Force:

100N@10rps

Wires:

Highlights:

Low Noise, Low Vibration, Low Heating, High Smoothness, High Reliability

Customization:

Supported

Supply Ability:

10000pcs per Month

Highlight:

Nema23 Linear Hybrid Stepper Motor

Nema23 Linear Hybrid Stepper Motors

Product Description

1. Product Selection Guide:
When choosing a hybrid linear stepper motor, comprehensive considerations need to be made according to the actual application scenarios and needs.

First of all, the performance indicators of the required motor should be clarified, such as output torque, speed, positioning accuracy, etc.

Then, choose the appropriate screw step motor model according to the actual application scenario. For example, for the occasion of high precision transmission and positioning, you can choose a high -precision screw stepping into the motor.

In addition, the compatibility of the motor needs to be considered to ensure that the compatibility of other components such as the selected motor, the driver, the control system and other components is good.

If u have any difficulty in product selection, could u kindly contact us for support any time? We will recommend the most proper products for u.

2. Hybrid Stepper Motor Naming Rules and General Technical Specifications
Linear stepper motor naming rules,

57LHS3004N Four Wires 100N Force 2 Phase Nema23 No Captive Hybrid linear Stepper Motors Linear Acuators 0
General Specifications,

Step Angle	1.8° (2 Phase)
Step Angle Accuracy	±0.09°
Size	Nema23, 57mm
Insulation Grade	500VDC, 20 MΩ Min. ,Class B
Dielectric Strengt	500 VAC for 1 Minute
Temperature Rise	Less than 80℃ (Rated Current)
Suface Temperature	Max.Allowed 100℃
Humidity Range	20% to 90% RH
IP Grade	IP40
Certificates	Rohs, CE, CCC

3. 20LHS0494/0244/0164 Captive Type Hybrid Linear Stepper Motor Performance Datasheet

Model

Current

Resistance

Inductance

Min Thrust

Rotor Inertia

Bi/Unipolar

Screw Lead

Screw Length

Weight

Motor

Length

A/Ø

Ω/Ø

mH/Ø

N @10RPS

g.cm2

# of Wires

57LHS3004N-170

3.0

1.1

3.2

100

280

Bi (4)

170

0.68

Note: Customization of motor specifications available.
