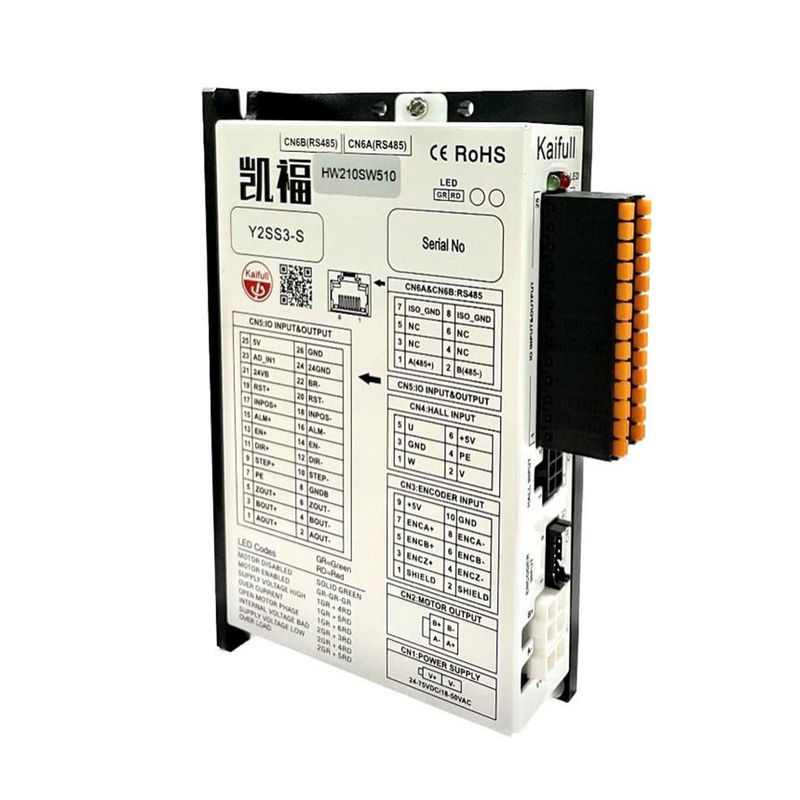

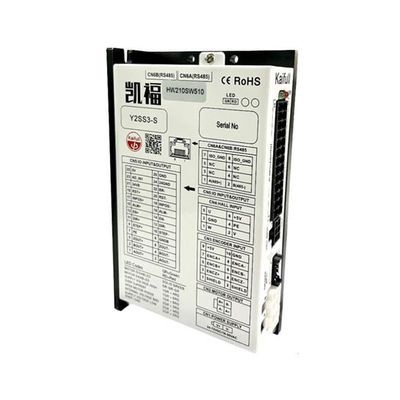

Y2SS3-S 8.0A 2 Phase Closed Loop Stepper Motor Drive For Industrial Automation

Brand Name:	YARAK
Model Number:	Y2SS3-S
MOQ:	≥50pcs
Packaging Details:	50pcs for each carton
Payment Terms:	Company account based T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE, ROHS

Type:

Closed-loop, Step Servo

Phase:

2 Phase

Control Mode:

I/O Control By Software

Encoder Output:

Input Voltage:

24 To 75VDC

Control Signal:

5 VDC And 24 VDC Compatible

Output Current(A):

0.5 To 8.0A

Special Functions:

Auto Tuning, Alarm Output, Load Inertia Optimization, Load Current Automatic Adjustment

Matching Motors:

Nema 8 To 34

Highlights:

Dynamic Current Control, Open-loop & Closed-loop Compatible, Wide Motor And Application Compatibility

Customization:

Available With MOQ

Supply Ability:

10000pcs per Month

Highlight:

2 Phase Stepper Motor Driver

Closed Loop Stepper Motor Driver

8.0A Closed Loop Stepper Driver

Product Description

Y2SS3-S Adaptive 8.0A 2 Phase closed loop Step Servo Drive with Encoders Output for Industrial Automation

1. Products Overview

A closed-loop step motor driver is a motion control driver that receives control singles and output proper driving current for a stepper motor and control its movement. Step motor and driver constitute a stepping motion control system, and the performance not only depends on the stepper motor, but also the stepper driver.

The advantages of closed-loop step motor drives include: no step loss, higher torque, higher precision, good stability, low power consumption, fast response speed, lower noise etc.

Closed-loop Step drives are widely used in factory automation, carving machines, electronic product manufacturing, logistics sorting, robots, various special automation equipment, medical equipment, CNC machine tools, laser equipment, printing machinery, material processing, safety system, navigation system, industrial test and measurement etc. There are many fields such as measurement and metering systems.

If u cannot find proper stepper driver or motor, could u kindly contact us any time? We will recommend the most suitable for you with great compatitiveness.

2. Main Technical Specifications

Characteristic

◆ DC input step servo driver

◆ Adaptive motor and load, adjust current automatically, 0.5-8.0A

◆ Input voltage: 24 - 75 VDC

◆ Pulse + direction / double pulse control mode

◆ 16 stall subdivide optional

◆ Control signal 5-24V compatible

◆ Multiple electrical protection

3. Stepper Driver External Interfaces

Y2SS3-S 8.0A 2 Phase Closed Loop Stepper Motor Drive For Industrial Automation 0

4. LED Status Indicator Description

Based on LED status indicators, driver working status or abnormal causes can be identified.

Display

Color

Explain

POWER

Green

The green light flashes when the driver is normal

ERROW

Red

When the driver went wrong, the traffic lights

flashing alternately

Status	Failure	*Causes*
green flicker	Drive normal	--
green always on	Drive not enabled	EN port has high level input
red and 1 green	Drive temperature is too high	Need to strengthen the heat
red and 1 green	Drive power input over voltage	Power supply voltage is greater than 75V
red and 1 green	Drive over current	Motor wiring fault or poor contact
red and 1 green	Motor winding open circuit	The motor is not connected well
red and 2 green	Drive internal voltage error	Power is too low
red and 2 green	Drive power input under voltage	Power supply voltage is less than 24V
5 red and 2 green	Over load	Exceeded load

5. Power Connection

Terminal identification	Power supply connection
V+	Positive pole
V-	Negative pole

6. CN3 Encoder Connection

The connection terminal and extension line of the encoder are designed to be directly inserted, so that self-wiring is considered unnecessary.

Y2SS3-S 8.0A 2 Phase Closed Loop Stepper Motor Drive For Industrial Automation 1

7. CN4 Hall Input

Switch setting	Description	Switch setting	Description
CN4 .5	U	CN4 .6	5V+
CN4 .3	GND	CN4 .4	PE
CN4 . 1	W	CN4 .2	V

8. CN5 I/O Control Signal

I/O control signal		Input/ Output	Reference
CN5 . 1	AOUT+		Encoder A+Output	Fig. 2
CN5 .2	AOUT-		Encoder A-Output Encoder B+Output Encoder B-Output Encoder Z+Output Encoder Z-Output
CN5 .3	BOUT+	O
CN5 .4	BOUT-	u t p u t
CN5 .5	ZOUT+
CN5 .6	ZOUT-
CN5 .7	PE		Driver grounding
CN5 .8	GNDB		Encoder ground wire (connected to the internal GND of upper computer)
CN5 .9	STEP+	Input	STEP+: pulse positive terminal	Fig. 4
CN5 .10	STEP-		STEP-: pulse negative terminal
CN5. 11	DIR+		DIR+: positive direction
CN5. 12	DIR-		DIR-: negative direction
CN5 .13	EN+		EN+ positive terminal (normally closed)
CN5. 14	EN-	Output	EN- negative terminal (normally closed)
CN5. 15	ALM+	Input	Alarm output +(100mA)	Fig. 1
CN5 .16	ALM-		Alarm output -(100mA)
CN5. 17	INPOS+		In-place signal output +(100mA)
CN5 .18	INPOS-		In-place signal output -(100mA)
CN5 .19	RST+		Alarm reset+	Fig. 4
CN5 .20	RST-		Alarm reset-	Fig. 4
CN5 .21	24VB	Output Input	24V Brake power supply Brake output +(24V1A)	Fig. 3
CN5 .22	BR-		Brake output -(24V1A)	Fig. 3
CN5 .23	AD- IN1	Output	Analog input
CN5 .24	24GND		Brake power supply 0V
CN5 .25	5V		Potentiometer power supply + 5 V	Fig. 5
CN5 .26	GND		Potentiometer power supply 0V	Fig. 5

Y2SS3-S 8.0A 2 Phase Closed Loop Stepper Motor Drive For Industrial Automation 2

9. CN6 RS485 Connection

Switch setting	Switch setting	Rotation position	Switch setting
CN6 .7	ISO_GND	CN6 .8	ISO_GND
CN6 .5	NC	CN6 .6	NC
CN6 .3	NC	CN6 .4	NC
CN6 . 1	A(485+)	CN6 .2	B(485-)

10. Control Signals Connections

Input connections:

Y2SS3-S 8.0A 2 Phase Closed Loop Stepper Motor Drive For Industrial Automation 3

Output connections:

Y2SS3-S 8.0A 2 Phase Closed Loop Stepper Motor Drive For Industrial Automation 4

9. Mechcanical Dimenssions

Y2SS3-S 8.0A 2 Phase Closed Loop Stepper Motor Drive For Industrial Automation 5
